Vertical lifting conveyor is applicable to the vertical lifting or lowering of flat articles at the bottom of large articles such as cartons and plastic frames between floors. The conveyed articles enter in a gap type.
The return trip does not occupy the work time, and the conveying efficiency is high. It can be used with the inlet and outlet equipment to make the conveying process completely automatic. According to the customer site requirements, can manufacture Z-type and C-type inlet and outlet two different forms of vertical lift. The conveying beat of type 2 is 20 pieces per minute, and that of type C is 10 pieces per minute. In order to increase the conveying speed, double the conveying speed can be doubled by making double-row inlet and outlet.
| Contents | Specifications |
| Body Material | carbon steel / SUS304 |
| Hopper Volume | 1.0L / 1.8L / 4.0L |
| Hopper Surface | dimple / plain |
| Power Supply | single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW |
| Conveying Capacity | 2.5m³/h / 4m³/h / 8m³/h |
| Machine Dimension(mm) | per customer’s requirement |
| Vibrating Feeder | detached / independent vibrating feeder |
| Feeder Volume | 70L / 100L / 150L / 200L |
| Discharge Funnel | single / double / multiple |

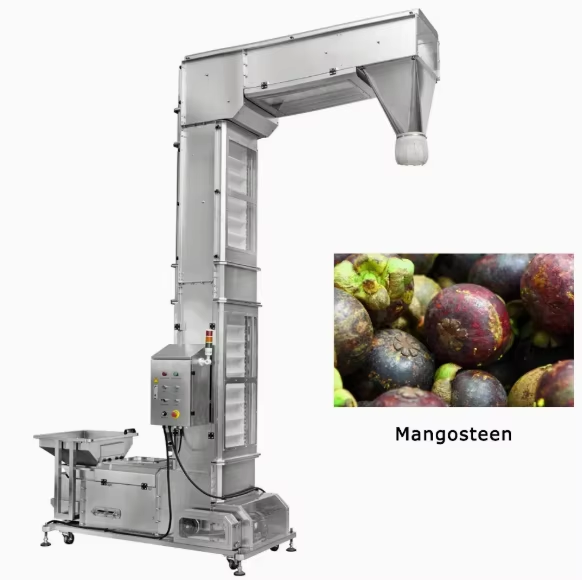

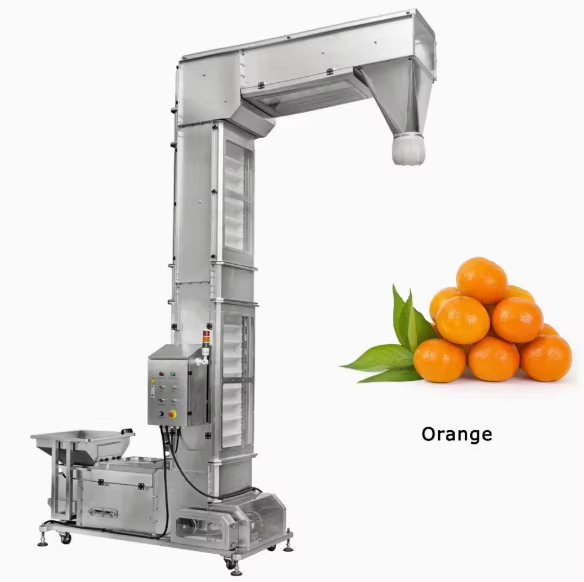

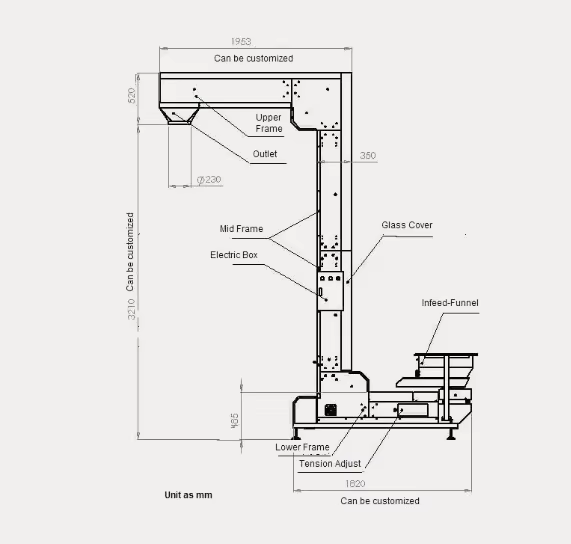

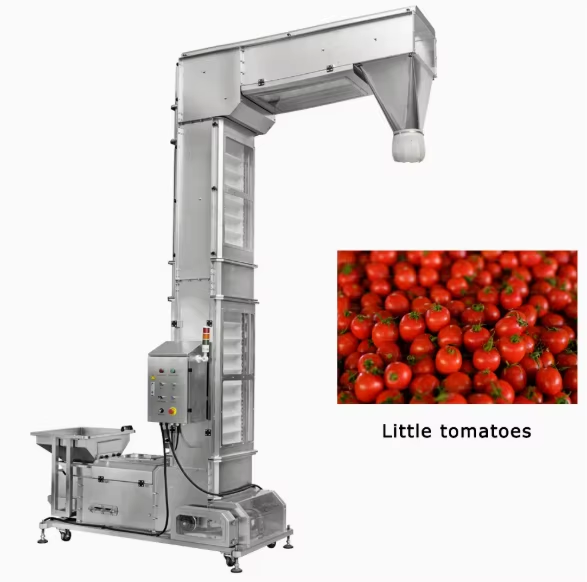

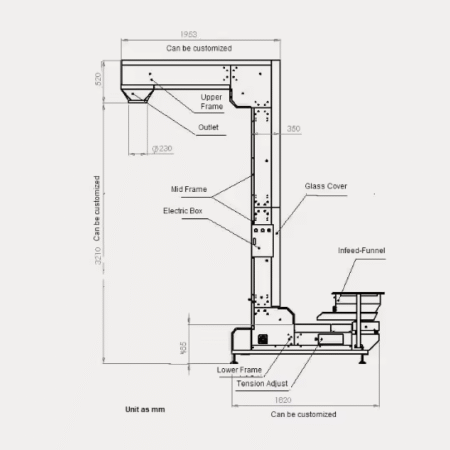

required locations. This type of elevator has a horizontal bottom portion, a vertical portion, and again a horizontal portion that
can be extended to suit the discharge requirement.
It is mainly applicable products: puffed food, fodder, candies,dried fruit, health food, grains, chemicals, hardware, etc.
Compact structure design for space saving.The lifting height and machine size can becustomized. Adjustable conveying speed and easymaintenance,disassembly and cleaning
Q1. Are you a manufacturer or a trading company?
A : We are a professional manufacturer with 15 years of industry experience
Q2.how can we guarantee quality?
A: Always a pre-production sample before mass production,Always final inspection before shipment.
Q3.Do you provide sample?
A:Yes,we could offer the sample of conveyor parts for free charge but the buyer should pay for shipping cost.
Q4.How about the payment method?
A: T/T, sight L/C,Paypal, Western Union are all accepted if you have other payment, pls contact me.
Q5.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q6.What is the shipping way?
A:By sea,air,Fedex,DHL,UPS,TNT etc.
Q7.Does your product have a warranty period? A:Our products are generally guaranteed for one year. We have strong technical force, product development ability and professional after-sales service team.
Q8: How about after-sales service?
A: No problem, online customer service is at your service 24 hours a day, free remote guidance for machines and equipment, we can also send our engineers to the site to install or repair the machine when appropriate, but this may incur some fees. If you have any questions, you can reply in time via WhatsApp or WeChat.
