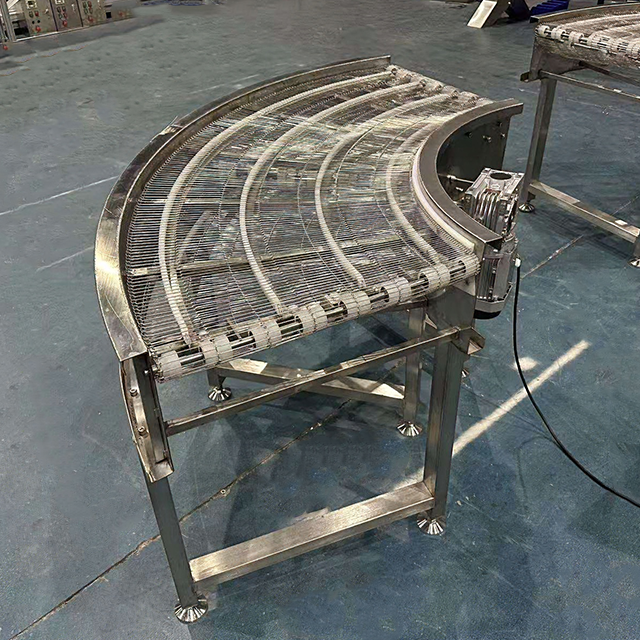

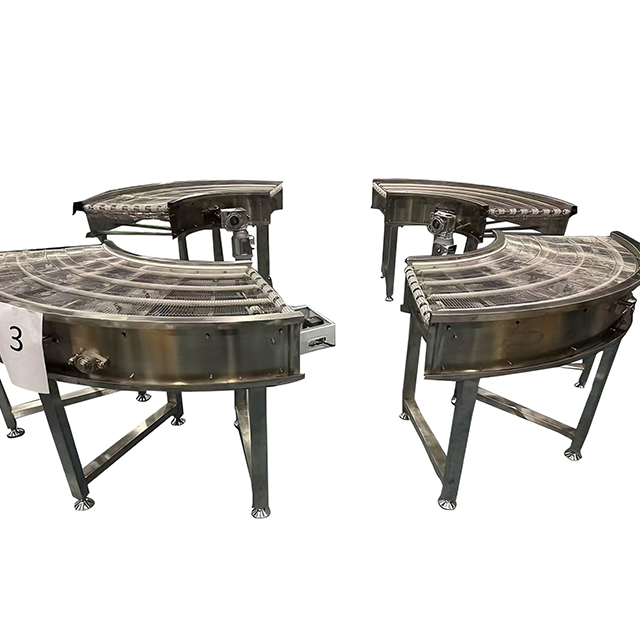

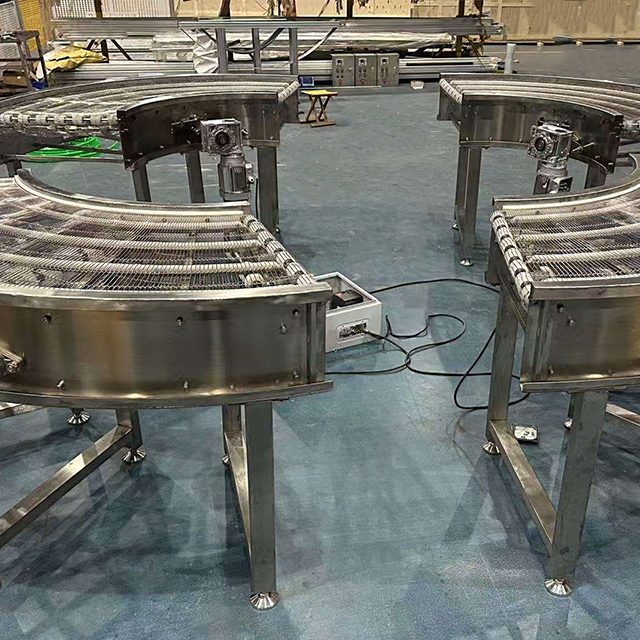

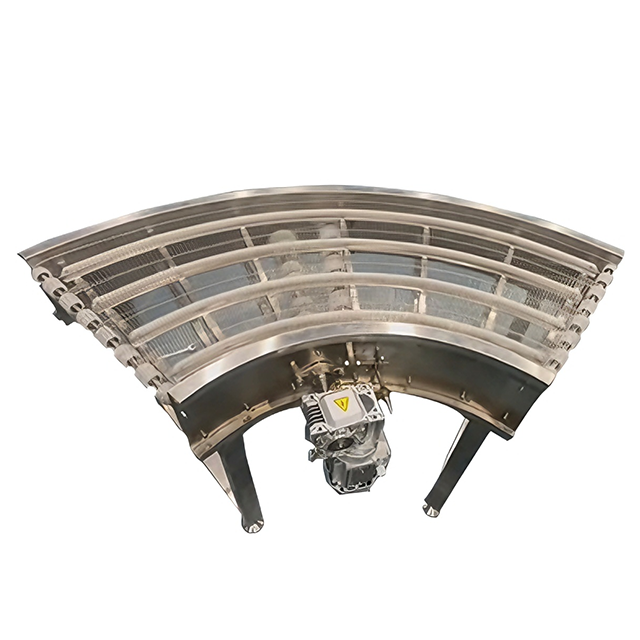

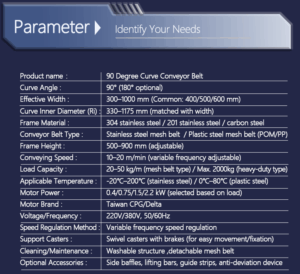

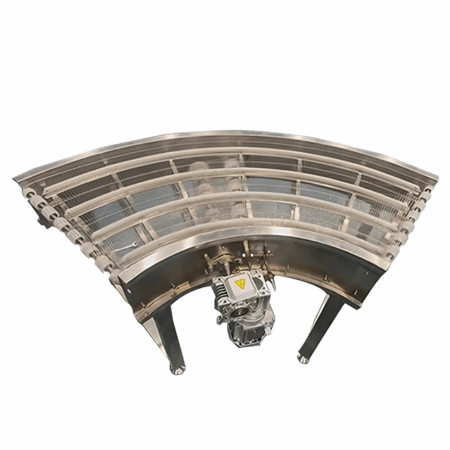

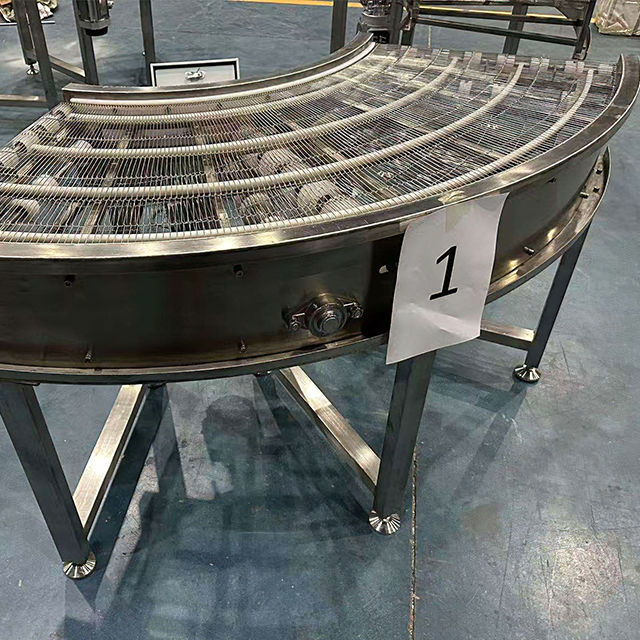

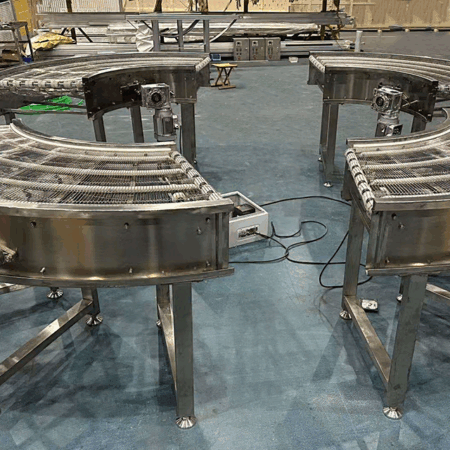

Product name ： 90 Degree Curve Belt Conveyor
Curve Angle : 90° (180° optional)
Effective Width : 300–1000 mm (Common: 400/500/600 mm)
Curve Inner Diameter (Ri) : 330–1175 mm (matched with width)
Frame Material : 304 stainless steel / 201 stainless steel / carbon steel
Conveyor Belt Type : Stainless steel mesh belt / Plastic steel mesh belt (POM/PP)
Frame Height : 500–900 mm (adjustable)
Conveying Speed : 10–20 m/min (variable frequency adjustable)
Load Capacity : 20–50 kg/m (mesh belt type) / Max. 2000kg (heavy-duty type)
Applicable Temperature : -20℃–200℃ (stainless steel) / 0℃–80℃ (plastic steel)
Motor Power : 0.4/0.75/1.5/2.2 kW (selected based on load)
Motor Brand : Taiwan CPG/Delta
Voltage/Frequency : 220V/380V, 50/60Hz
Speed Regulation Method : Variable frequency speed regulation
Support Casters : Swivel casters with brakes (for easy movement/fixation)
Cleaning/Maintenance : Washable structure ,detachable mesh belt
Optional Accessories : Side baffles, lifting bars, guide strips, anti-deviation device
