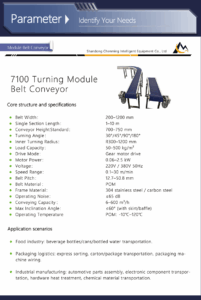

Belt Width : 200-1200 mm
Single Section Length : 1-10 m
Conveyor Height Standard : 700-750 mm

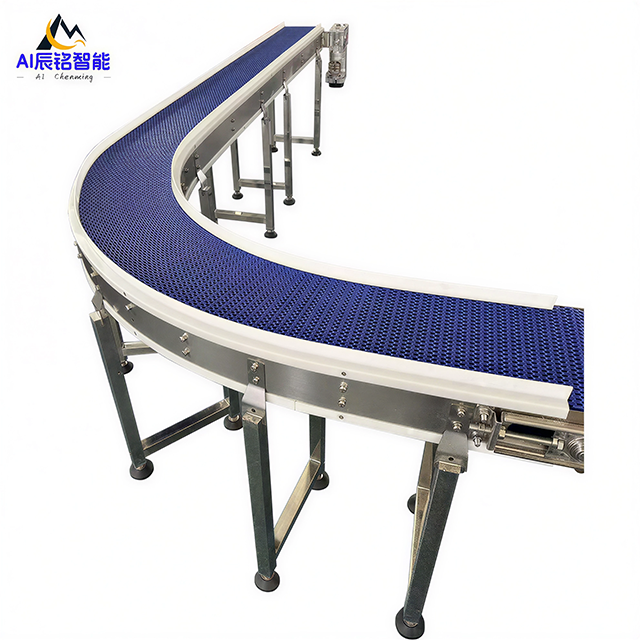

Turning Angle : 30°/45°/90°/180°
Inner Turning Radius : R 300-1200 mm
Load Capacity : 50-500 kg/m2
Drive Mode : Gear motor drive
Motor Power : 0.06-2.5 kW
Voltage : 220 V/380 V 50 Hz
Speed Range : 0.1-30 m/min
Belt Pitch : 12.7-50.8 mm
Belt Material : POM
Frame Material : ≤65 dB
Operating Noise : 6-600 m3/h
Conveying Capacity : ≤60° (with skirt/baffle)
Max Inclination Angle : 304 stainless steel / carbon steel
Operating Temperature : POM:-10°C-120°C
