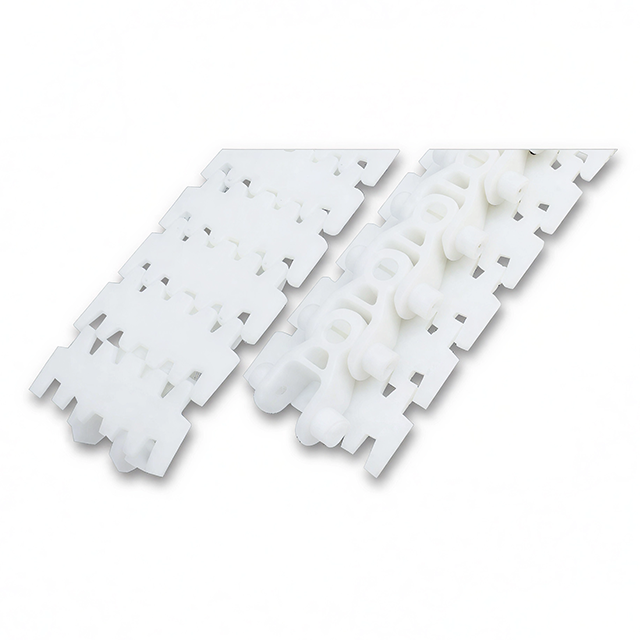

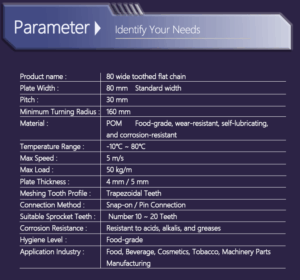

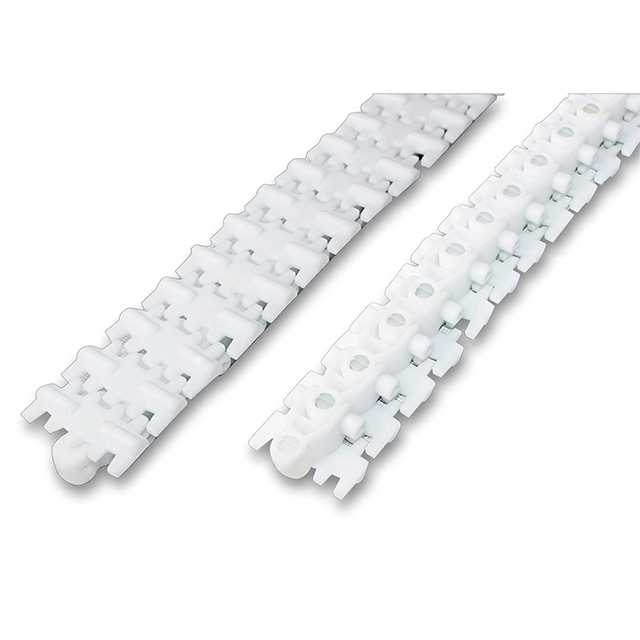

Product name : 80 wide toothed flat chain

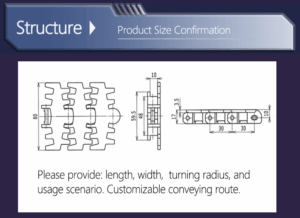

Plate Width : 80 mm Standard width
Pitch : 30 mm

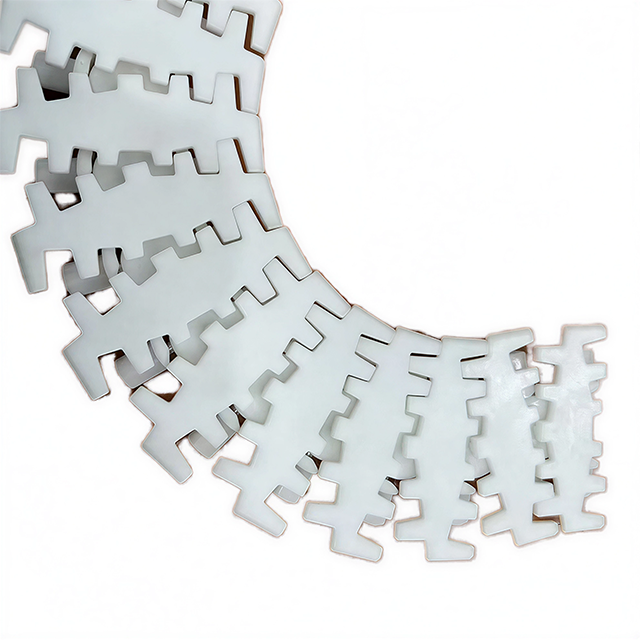

Minimum Turning Radius : 160 mm
Material : POM Food-grade, wear-resistant, self-lubricating, and corrosion-resistant
Temperature Range : -10℃ ~ 80℃
Max Speed : 5 m/s
Max Load : 50 kg/m
Plate Thickness : 4 mm / 5 mm
Meshing Tooth Profile : Trapezoidal Teeth

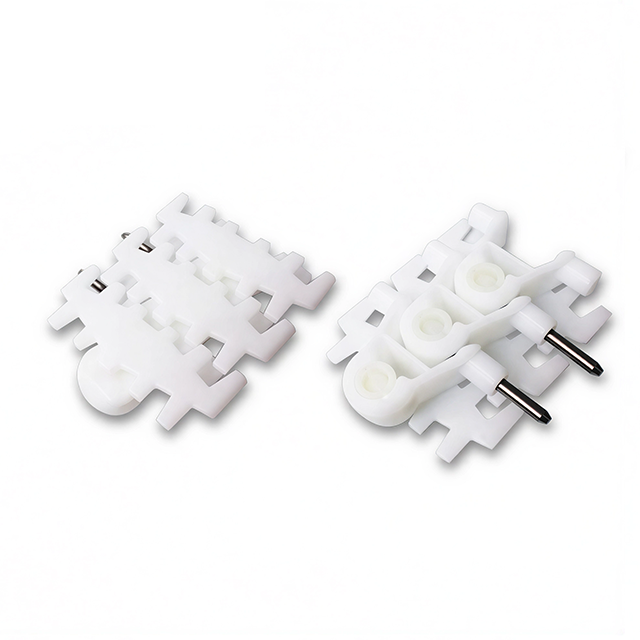

Connection Method : Snap-on / Pin Connection
Suitable Sprocket Teeth : Number 10 ~ 20 Teeth
Corrosion Resistance : Resistant to acids, alkalis, and greases
Hygiene Level : Food-grade

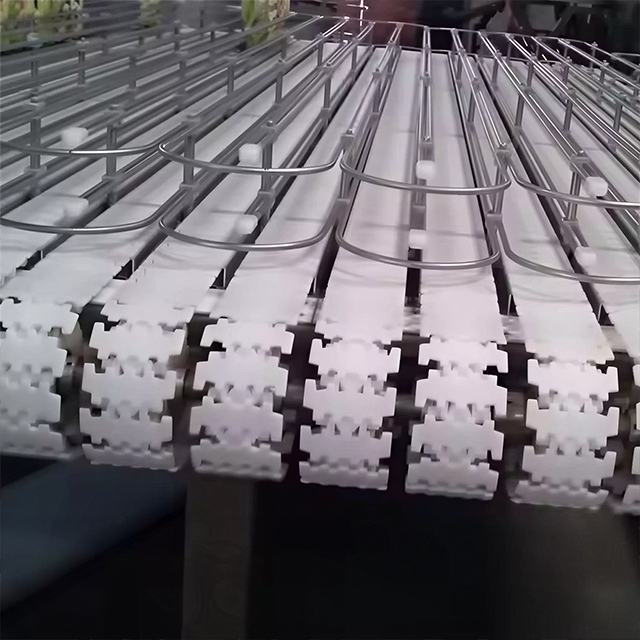

Application Industry : Food, Beverage, Cosmetics, Tobacco, Machinery Parts Manufacturing
