Introduction to product parameters
1. Definition and Structural Characteristics

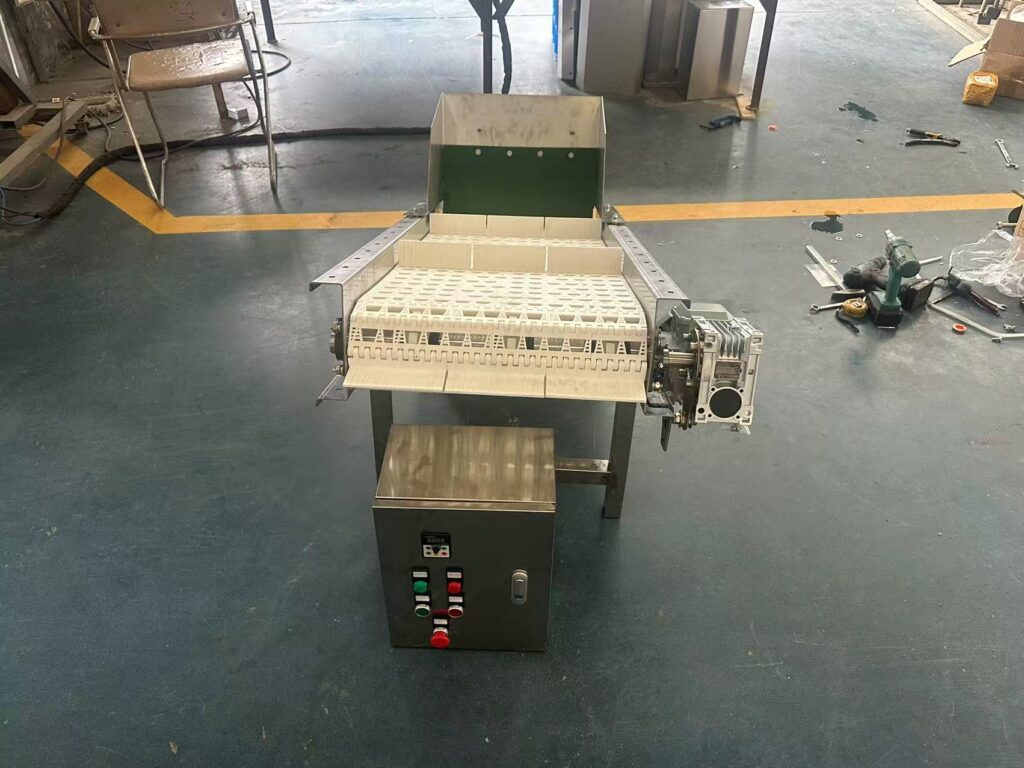

Modular design: It adopts a combination of flat plastic steel mesh belts and detachable baffles. The height of the baffles can be customized, which is suitable for anti-slip lifting of materials such as particles and bottles.
Drive mode: chain wheel drive, with high operation stability, supporting horizontal, climbing and vertical conveying.
2. Materials and Properties
Main materials:
Polyvinyl chloride steel (POM): oil-resistant, waterproof and impact-resistant, suitable for a temperature range of -10 °C to 120 °C;
Optional modified materials: Modified materials can improve high-temperature resistance or chemical corrosion resistance.
Baffle material: integrated with the mesh belt, enhancing wear resistance and preventing material scattering.
3. Technical Parameters
Parameter Item Specification Range
Spacing 50.8mm (universal)
Barrier height: 10-50 mm (customizable)
Applicable speed: 0.5-20m/min (adjustable)
Open area ratio: 2% – 48% (select as needed)
4. Typical Application Scenarios
Food industry: Vertical lifting of bottled beverages, transportation in sterilization lines (must meet food-grade standards);
Chemical/Electronics: Sorting and transportation of corrosive materials or precision components (relying on corrosion resistance and low-noise characteristics);
Logistics sorting: directional conveying of packages and boxes (with baffles to prevent deviation)
